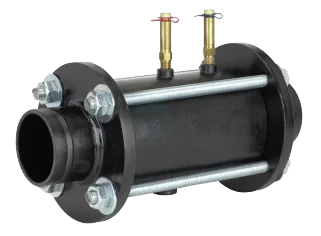

Model AG
Model AG Automatic Balancing Valve incorporates a wafer style cast steel body and 300# grooves adaptor. The removable flow cartridge(s) is factory set to automatically limit the GPM to within ±5% of the specified flow. Shipped with Rods and Nuts for use with factory supplied grooved adaptor. Standard features include Dual pressure/Temperature Ports.
- Pressure Ratings: 600 PSIG (4140 kPa)
- Temperature Ratings: 250ºF (121ºC)
- Accuracy: ± 5% of flow rate Body
- Material (Wafer): Cast Steel
- End Connections: ANSI 300# Grooved
- Flow Cartridge(s): Stainless Steel Wear Surfaces with Stainless Steel Springs
- Available Options: “PTV” combination PT & Air Vent
