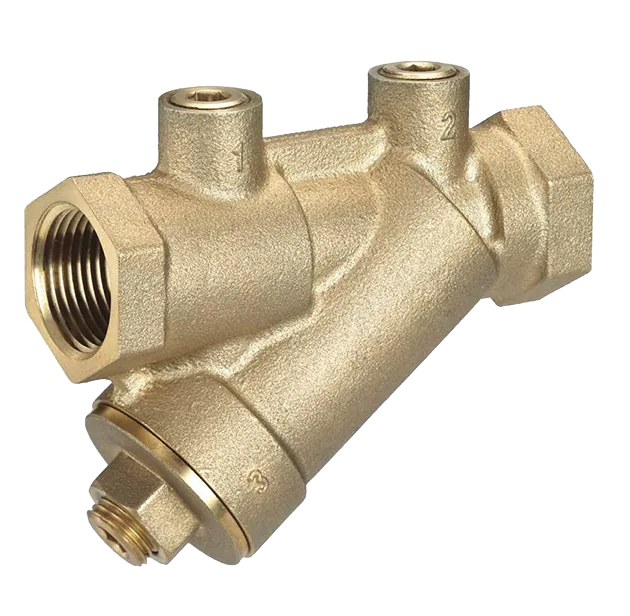

Model AL
Model AL is a low-lead automatic flow control device. The removable flow cartridge is factory set to automatically limit the GPM to within ±5% of the specified flow. Standard features include EPDM O-rings and seals, FNPT end connections and dual plugged accessory ports.
Specifications
- Ratings: 400 PSI (2758 kPa)
- Temperature Ratings: 250ºF (121ºC)
- Accuracy: ± 5% of flow rate
- Body Material: Naval Brass, C46500 Low-Lead (Max. lead content .25% by weight)
- End Connections: FNPT – Inlet and Outlet
- Flow Cartridge(s): Ultrason® Composite
- Seals: EPDM
- Available Options: PL – Low-Lead PT test port
- PE – Press End Connections
