Model VG/VW

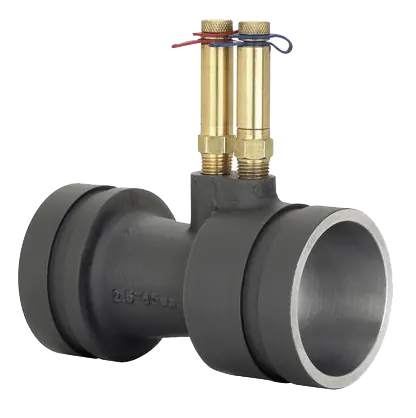

Model VG/VW Venturi Flowmeter features a carbon steel venturi flow element. The precision machined throats provides measurement accuracy of ± 3% of flow rate. Model VG offers Grooved end connections. Model VW offers Weld end connections. Dual extended length Pressure/Temperature ports and Hanging I.D. Tag.
Specifications
- Pressure Ratings: 400 PSI (2758 kPa)
- Temperature Ratings: 250ºF (121ºC)
- Accuracy: ± 3% of flow rate
- Body Material – Venturi: 2.5” – 6.0” ASTM A-216 Grade WCB
- 8.0” – 16.0” ASTM A-120
- End Connections: VG = Grooved End Connections
- VW = Weld End Connections
- Metering Ports: Extended Length Pressure/Temperature test ports
- Available Options: “PTV” combination PT & Air Vent
